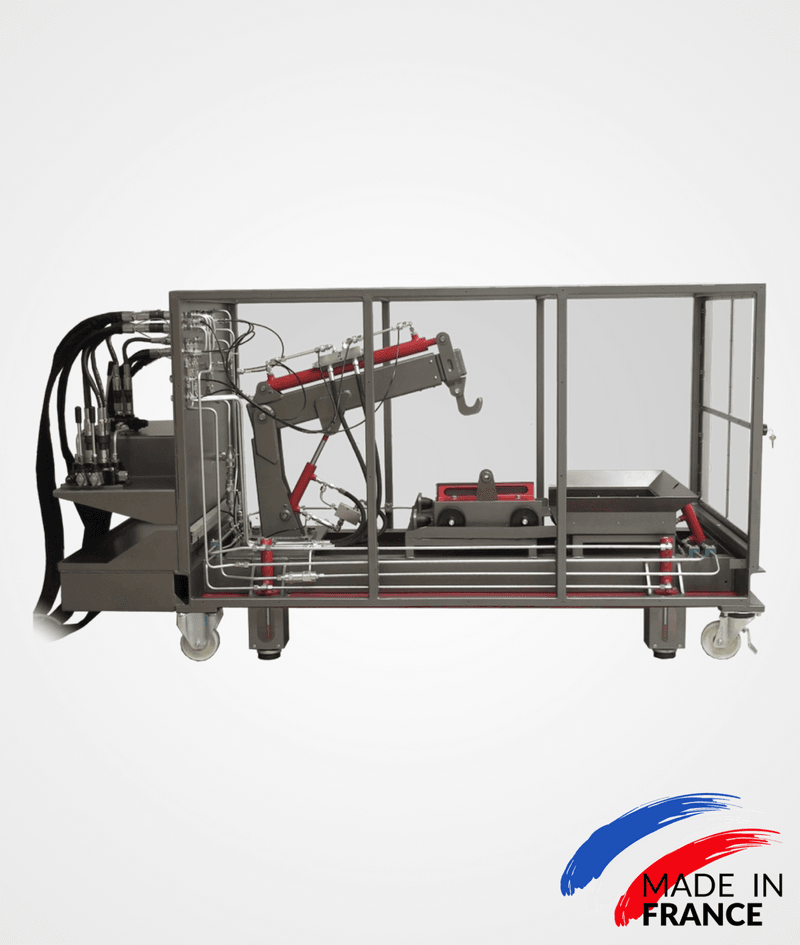

PO-GT-v3 Telescopic crane training bench (manual version)

PO-GT-v3 Telescopic crane training bench (manual version)

Unlike the standalone version PO-GT-v2, this operative part needs to be connected with a didactic bench or a hydraulic power station in order to operate.

Product description

Materialization of the hydraulic functions

This manual operative part is connected to the SHCO V2 type hydraulic bench or the BHI4 panel bench.

The “Non-Standalone” POGT Operative Part represents a real telescopic crane allowing students to be placed in simulated real-life situations in a safety approach in order to materialize hydraulic functions.

There are 4 kinematic movements: stabilizers, grasping/lifting, telescope, and tipper truck.

For which sector is this standalone telescopic crane bench intended?

It is intended for the following sectors:

  • Industrial maintenance,
  • Equipment maintenance (Agriculture, Public Works, and Parks & Gardens),
  • Agricultural equipment,
  • Maritime and naval.

Characteristics of the telescopic crane bench, manual version

  • 4 stabilizers
  • 1 lifting cylinder
  • 1 x 80 kg load
  • 1 telescope cylinder with double balancing valve
  • 1 tipper cylinder
  • 3 x 4/3valves with indexed manual control
  • 1 double flow limiter
  • 1 pressure gauge

Safety of movements managed bycontrolled valves

Lifting and telescope equipped with balancing valves

Valves with manual control

Valves with manual control

4 cylinders ensuring lifting of the telescopic crane

4 cylinders ensuring lifting of the telescopic crane

Modular load of 80 Kg maximum

Control desk

Control desk

VIDEO

PO-GT-v3 connected to the SHCO-v2 hydraulic didactic bench

VIDEO

Simulation movie with Automation studio™

We already equip a large number of training centres, primary and secondary schools, and university institutes of technology (IUTs). We invite you to contact us so that we can define your needs together.
