Hydraulic training bench SHCO 4.0

Hydraulic didactic bench SHCO 4.0

wifi icon for bench      multi screen icon      TOR icon      proportional icon

It integrates a new generation of PLC with digital display. Through this tool, students are able to control the hydraulic functions of the bench with the PLC display and also with smartphone, tablet or computer via a WIFI connection.

Product description

Remote control of the bench

The SHCO 4.0 bench has the same functionality as the SHCO-V2, with a difference that we have replaced the remote control by a new generation touch screen PLC.

3 versions available

  • On-Off,
  • Proportional open loop,
  • Proportional open loop and closed loop,

PLC programming & HMI creation, (optional version, on request).

SHCO 4-0 hydraulic didactic training bench wifi

Characteristics of the SHCO 4.0 didactic bench

Digital control of the bench

Control hydraulic functions of the bench through touch screen: bench start-up and commissioning, motors and cylinders control, command signal input for hydraulic proportional valves… Data visualization (flow, temperature, pressure, speed, oil level…).

Remote Access

Pilot the bench from anywhere at any time with a Smartphone, a tablet or a PC…
Perform remotely configurations through webserver , even on the other side of the world: breakdown simulation, analysis & maintenance…

Pdf & videos Viewer

Lectures of the manuals, technical datasheets, exercise workbooks, demonstration videos associated to the benches.

Import & export , record measurement data

Curves, diagrams, values (flow, temperature, pressure, speed)…

Details of the SHCO 4.0 hydraulic didactic bench

  • HMI 15.6″ touch screen
  • Interfaces with Audio output, SD Micro card, USB 2.0 ports,
  • Remote Control – Remote Access,
  • Import & Export, data recording,
  • .pdf & video Viewer.

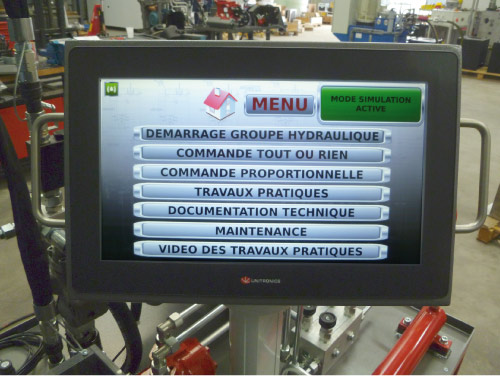

SHCO 4.0 hydraulic didactic training bench touch screen

HMI touch panel –15.6’’ model (on request for 10.4” model)

Bloc fonction de commande TOR

Block CETOP 3 function for on-off controls.

SHCO 4.0 hydraulic didactic training bench hirshman

Electric connection by Harting plug.

Valve équilibrage double ligne

Load regulation block: Cylinder & motor.

Moteur électrique

Hydraulic motors.

Manipulateur proportionnel

3 axis proportional manipulation for PVG 32 control.

Distributeur PVG 32

PVG 32 Valve for proportional control of motors and cylinders.

Pompe pistons axiaux

Axial pistons pump with variable cylinder capacity with constant pressure and “Load Sensing” regulatory system.

Vérins double effet

Double acting cylinders.

VIDEO

Demo video of the SHCO 4.0 Hydraulic Training Bench

We already equip a large number of training centres, primary and secondary schools, and university institutes of technology (IUTs). We invite you to contact us so that we can define your needs together.

Mickaël Langlais - ID System
